SYSTEM: PROPULSION UNIT

JET-RPM10000APS-UAV

Ultimate Performance Propulsion Platform

The JET RPM JR 100 represents the pinnacle of our micro-turbine propulsion technology, delivering uncompromising 100 kgf thrust output through cutting-edge aerodynamic optimization and advanced materials engineering. Designed for high-endurance unmanned systems and demanding defense applications.

REQUEST DATASHEET

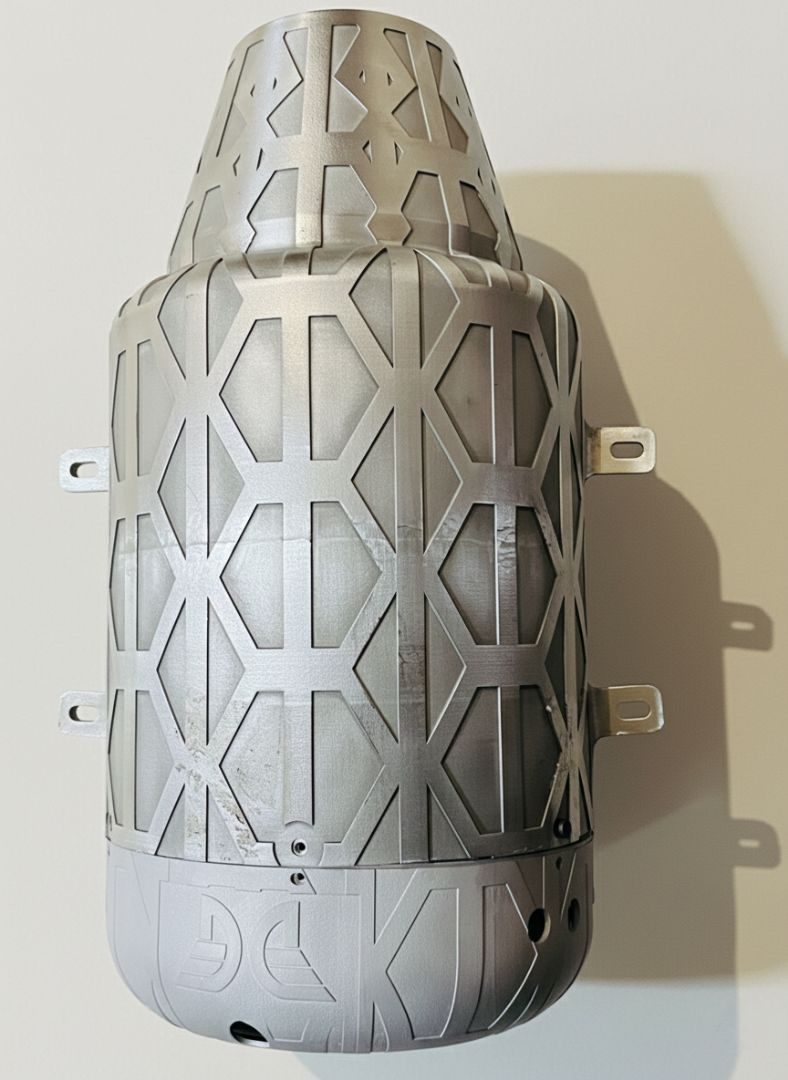

JET RPM JR 100 Engine

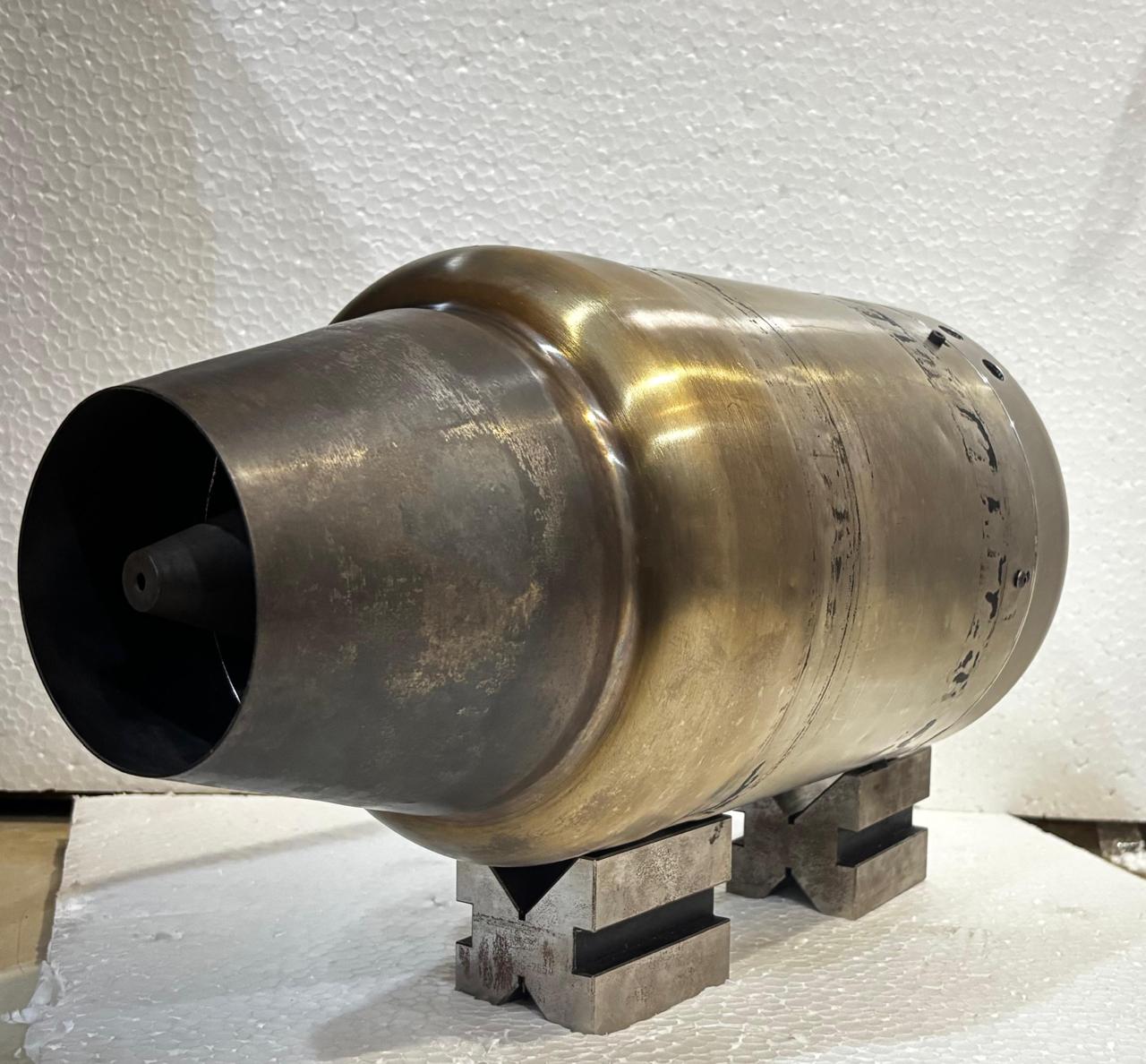

JR 100 Specs

TECHNICAL SPECS

CLASS: 100KG THRUST
ConfigurationSingle-spool
Diameter203mm
Length496mm
Dry Weight6.0 kg
Max Thrust100 kgf @ 100%
Max RPM65,000
Idle RPM20,000
Pressure Ratio3.8:1
EGT Range450-720°C
Fuel Rate2,100ml/min
Fuel TypeJet A-1 / Diesel

ENGINEERING

STATUS: OPTIMIZED
  • Maximum Thrust Architecture: 100 kgf output represents the apex of our propulsion technology.
  • Exceptional Power Density: Industry-leading thrust-to-weight performance metrics.
  • Mission-Adaptive Platform: Fully customizable for specialized operational requirements.
  • Multi-Domain Applications: Commercial heavy-lift, industrial long-range, and advanced military operations.
  • Reinforced Construction: Aerospace-grade alloys and advanced composite integration.
  • Next-Generation Control Systems: AI-enhanced performance optimization and fault diagnostics.
  • Extended Operational Envelope: Superior performance across altitude, temperature, and G-load extremes.

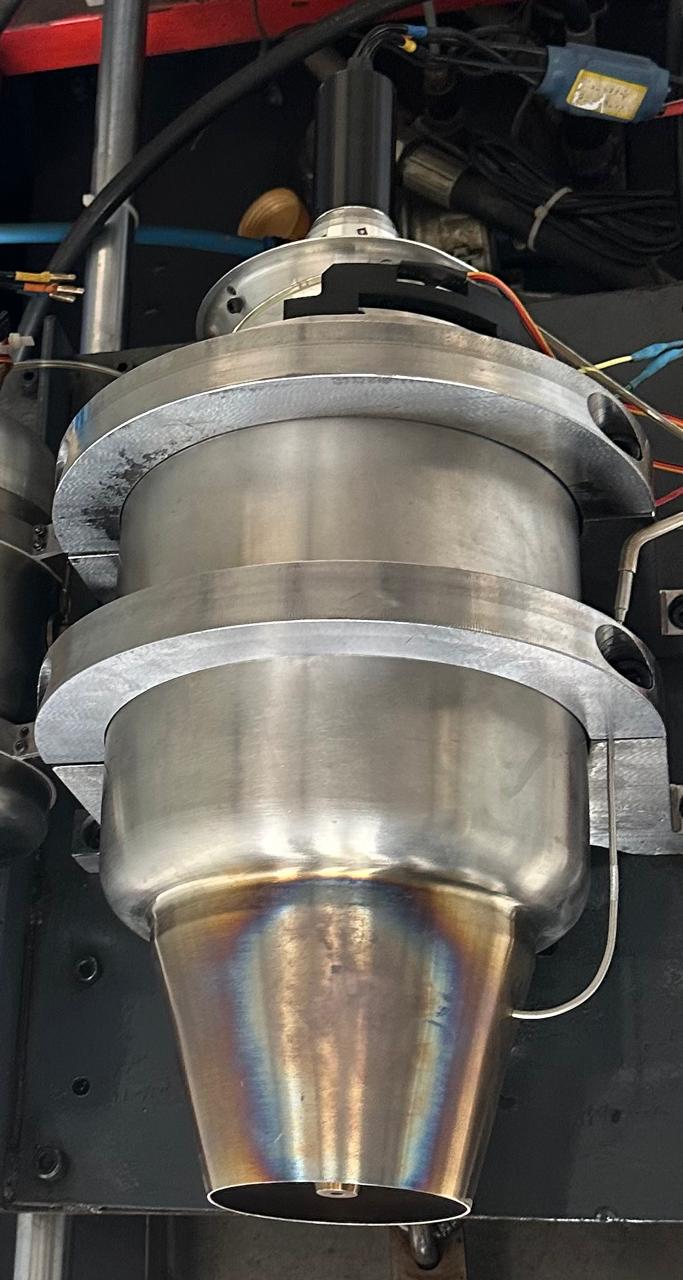

JR 100 Engineering

PERFORMANCE DEMONSTRATION

REF: LIVE TEST FEED
